3.3G Analog FPV Video Transceiver Module, Wireless Audio Video Receiver Transmitter for Drones
3.3G Analog FPV Video Transceiver Module, Wireless Audio Video Receiver Transmitter for Drones
Product Features
-

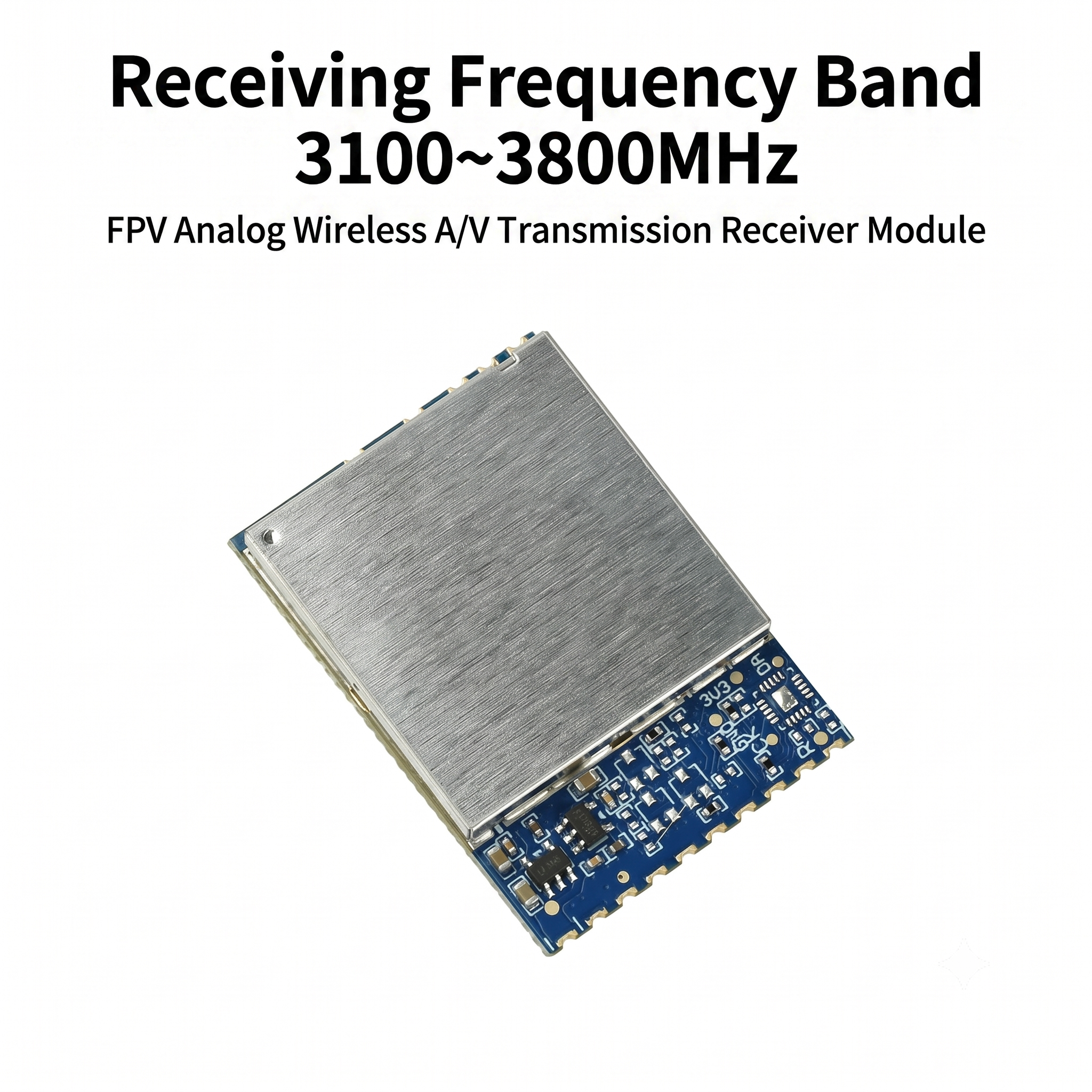

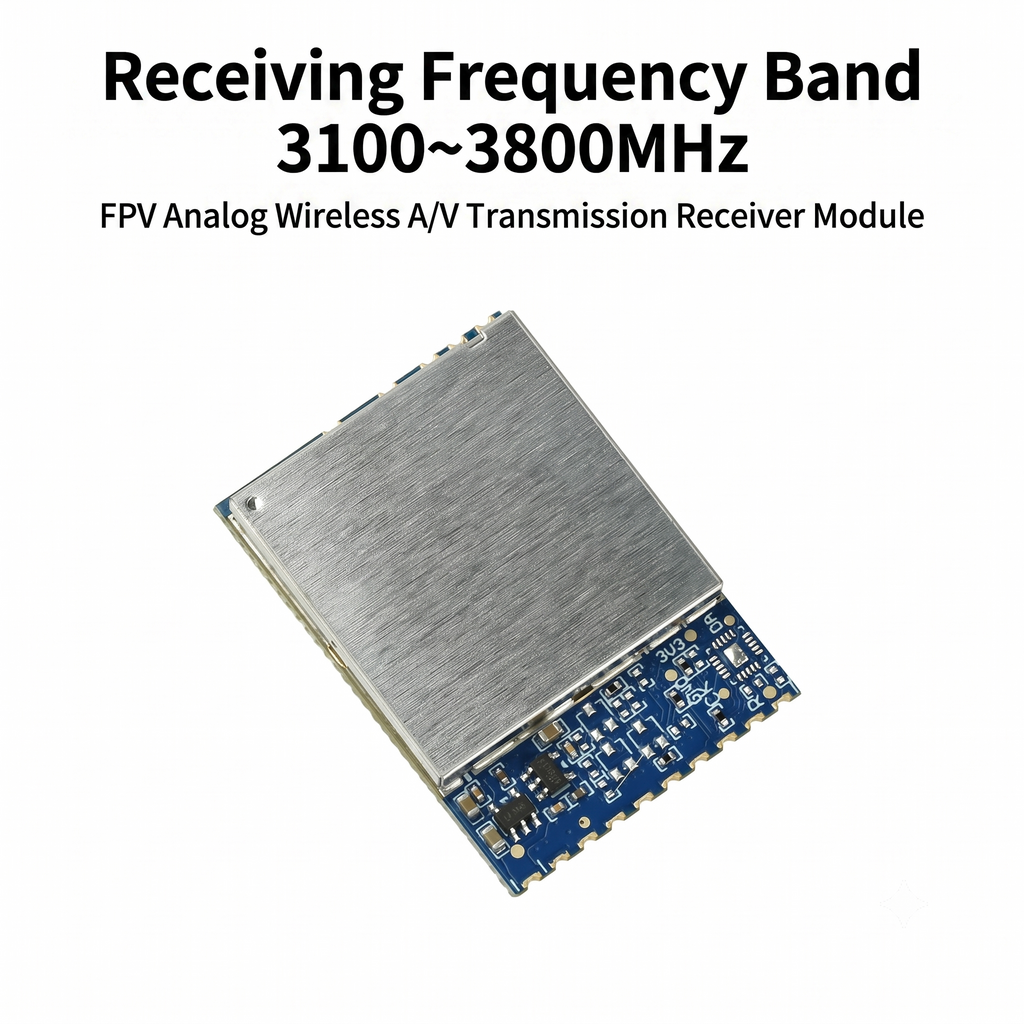

Supports reception on the 3.3G frequency band, covering a wide frequency range of 3100~3800MHz.
-
Low-latency CVBS video output, ideal for real-time video transmission of FPV drones.
-
Receiving sensitivity reaches -95dBm, featuring strong anti-interference performance and stable signals.
-

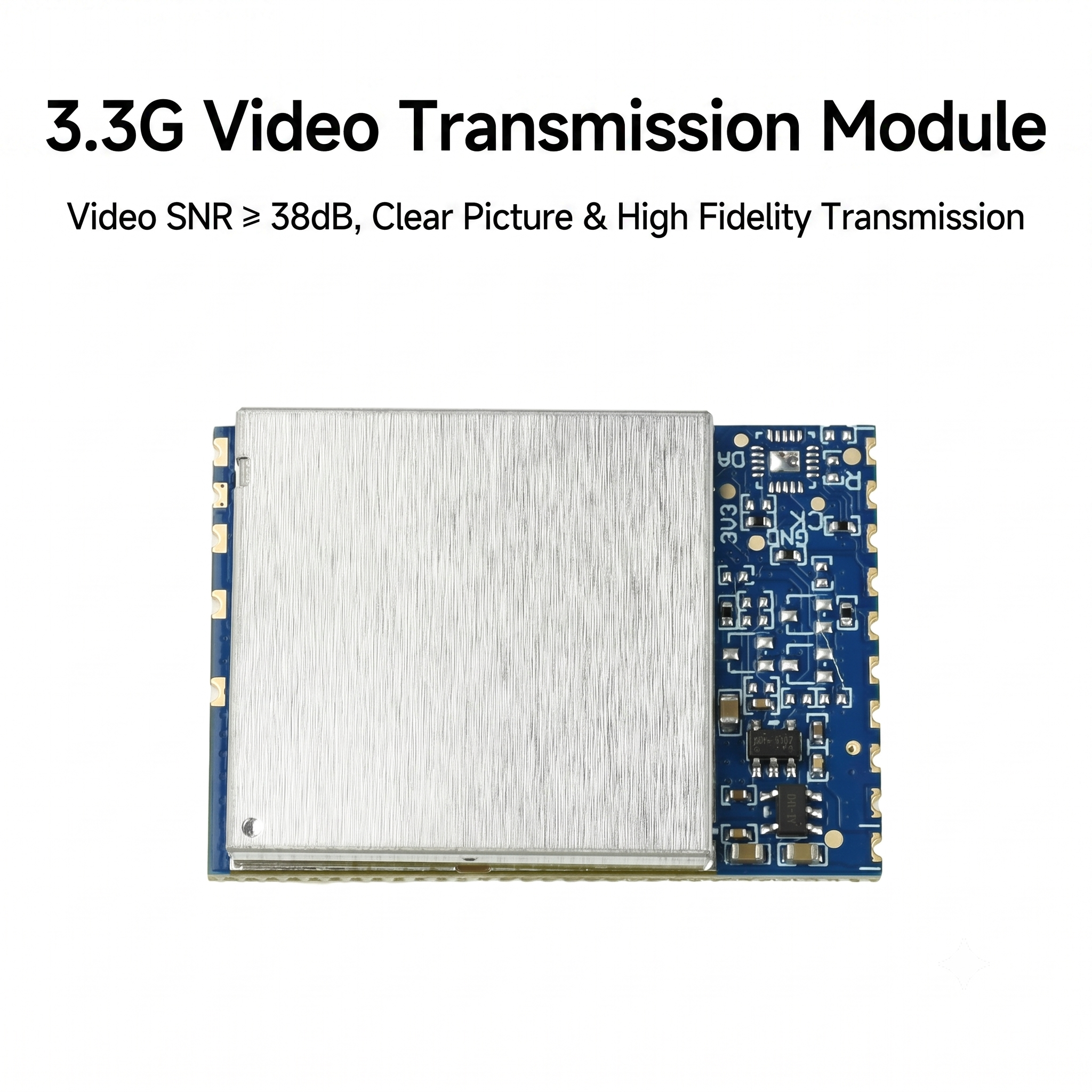

Video signal-to-noise ratio ≥38dB, delivering clear images and high transmission fidelity.
-
Compact size for easy integration and installation.

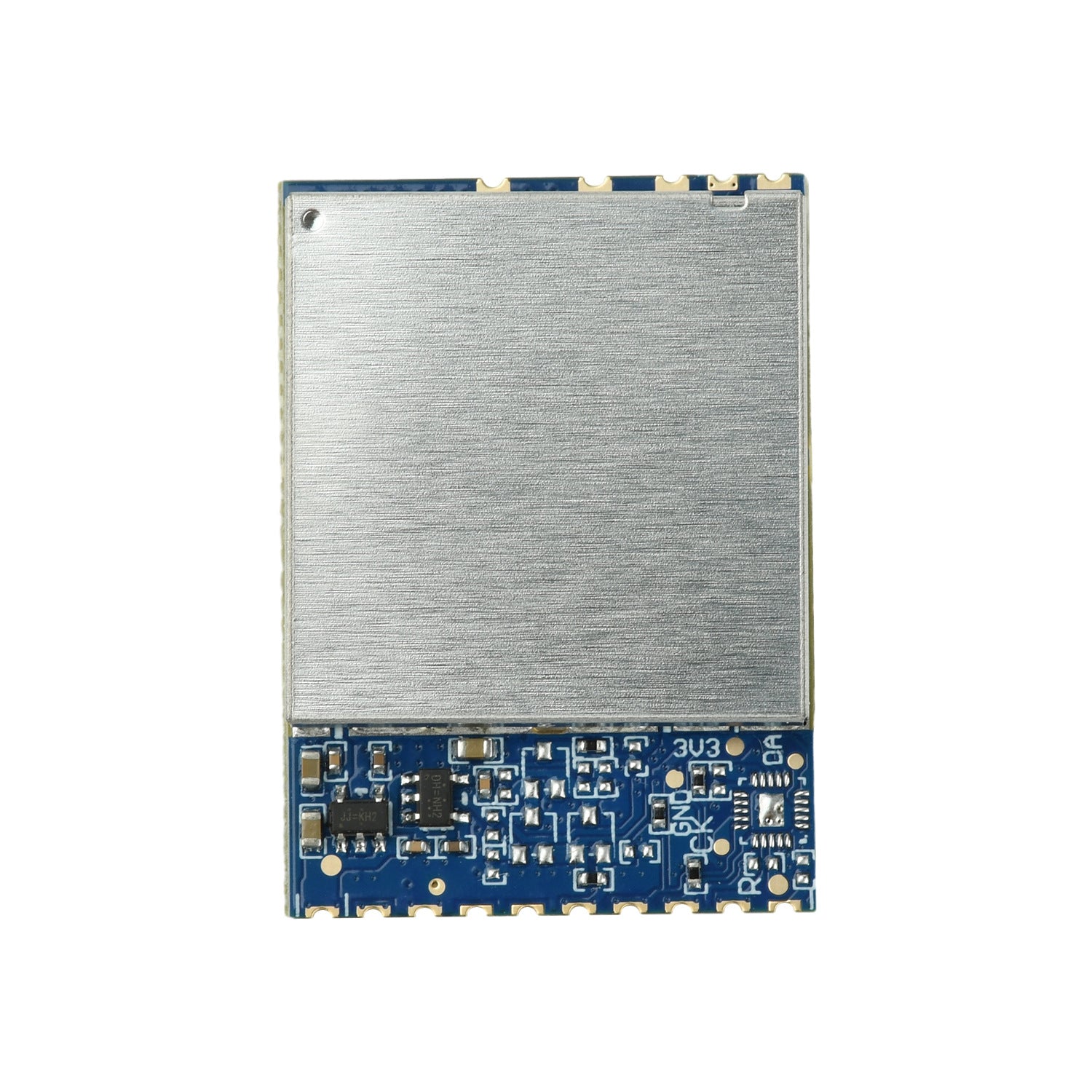

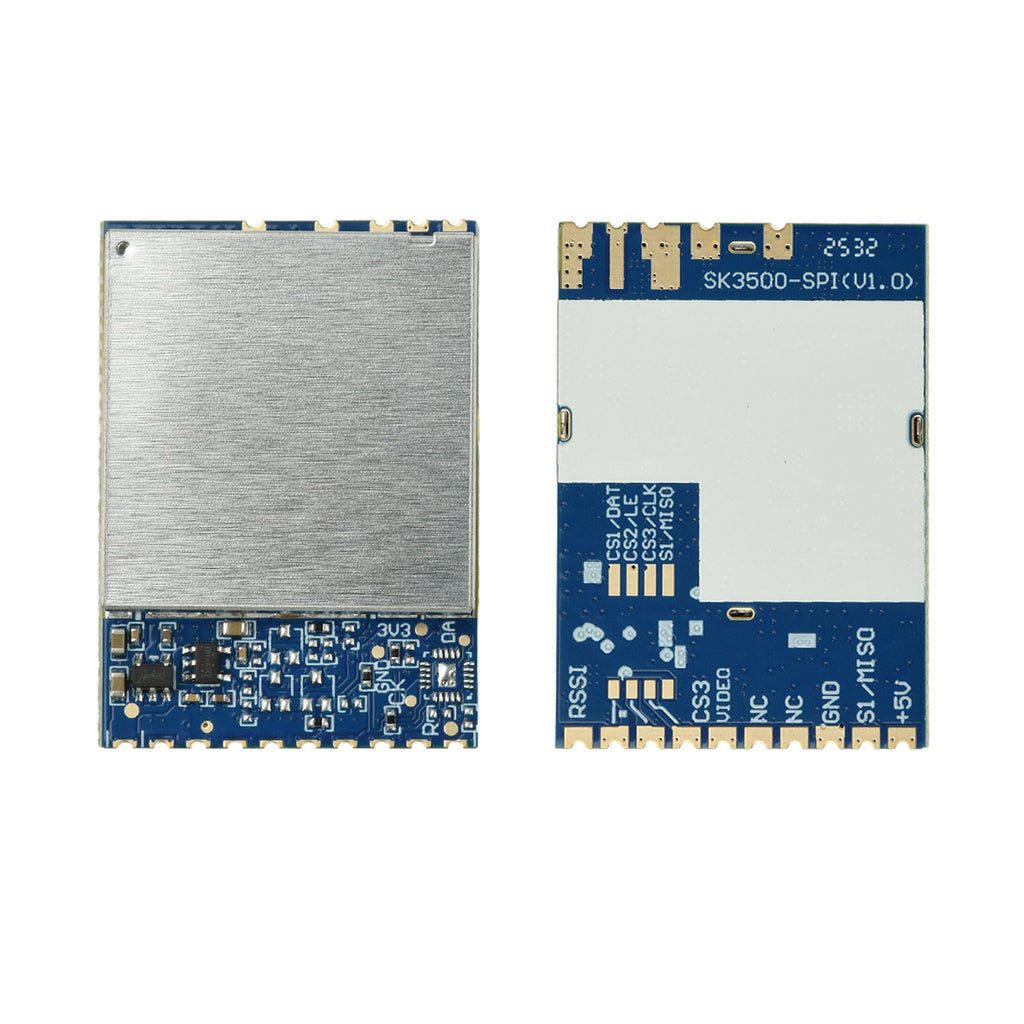

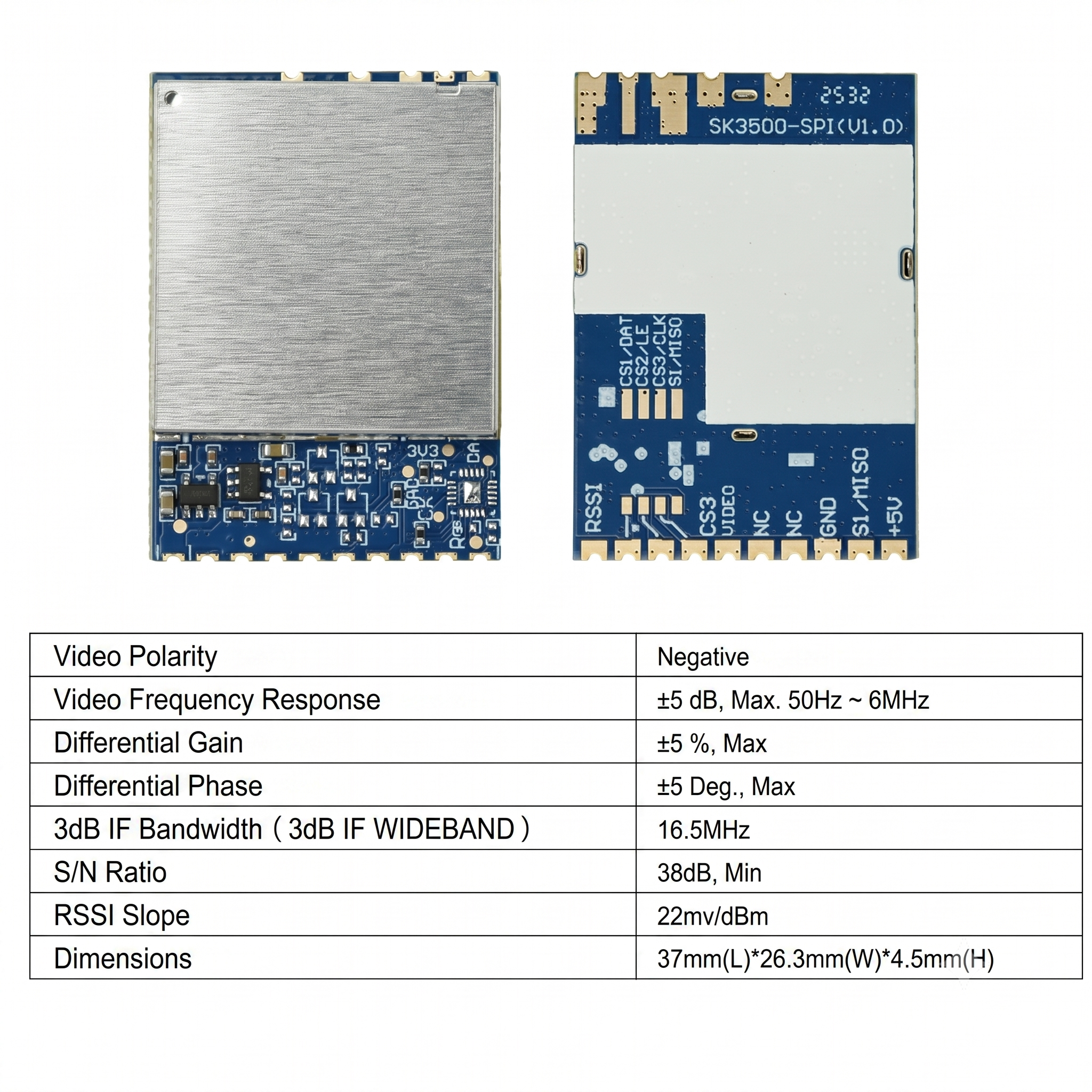

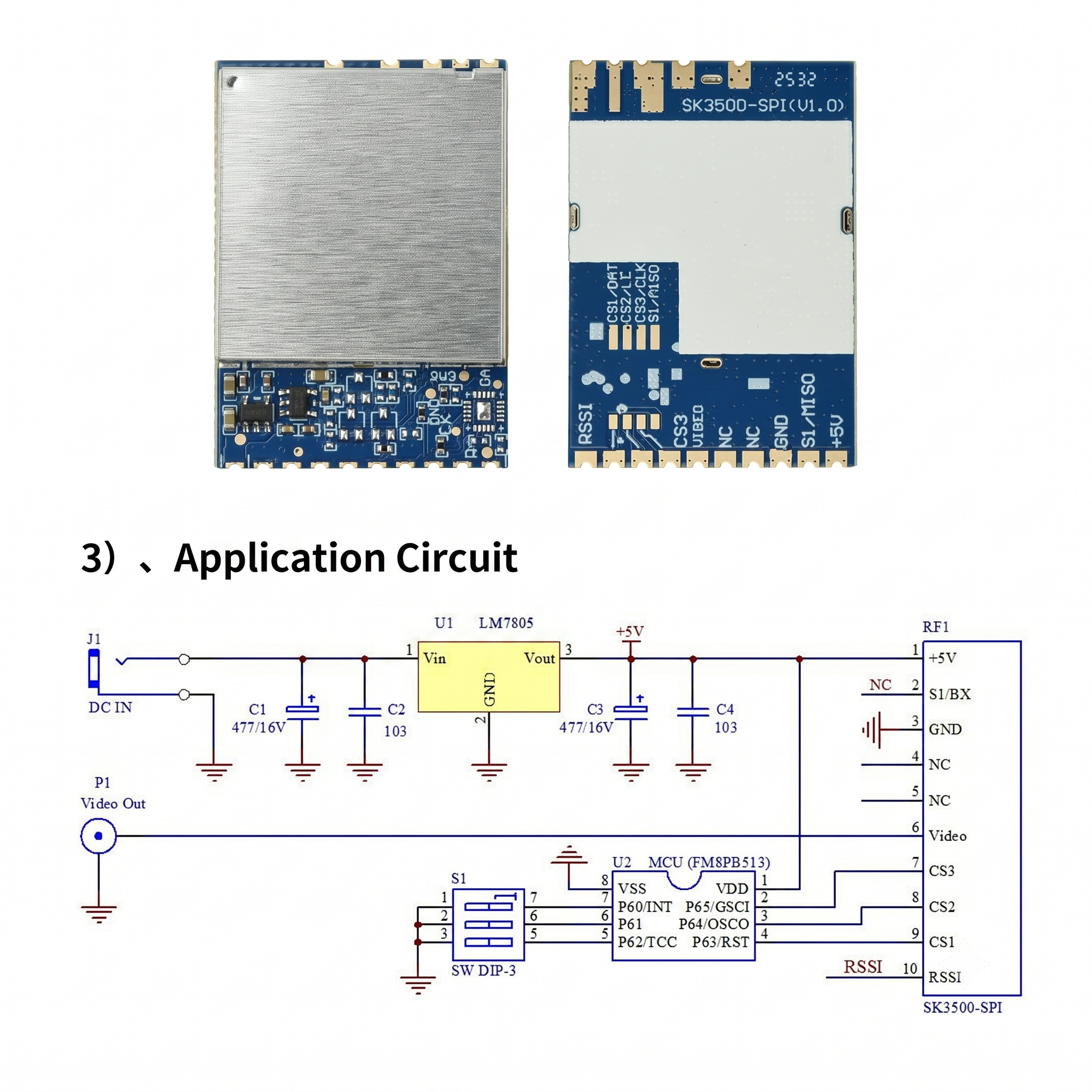

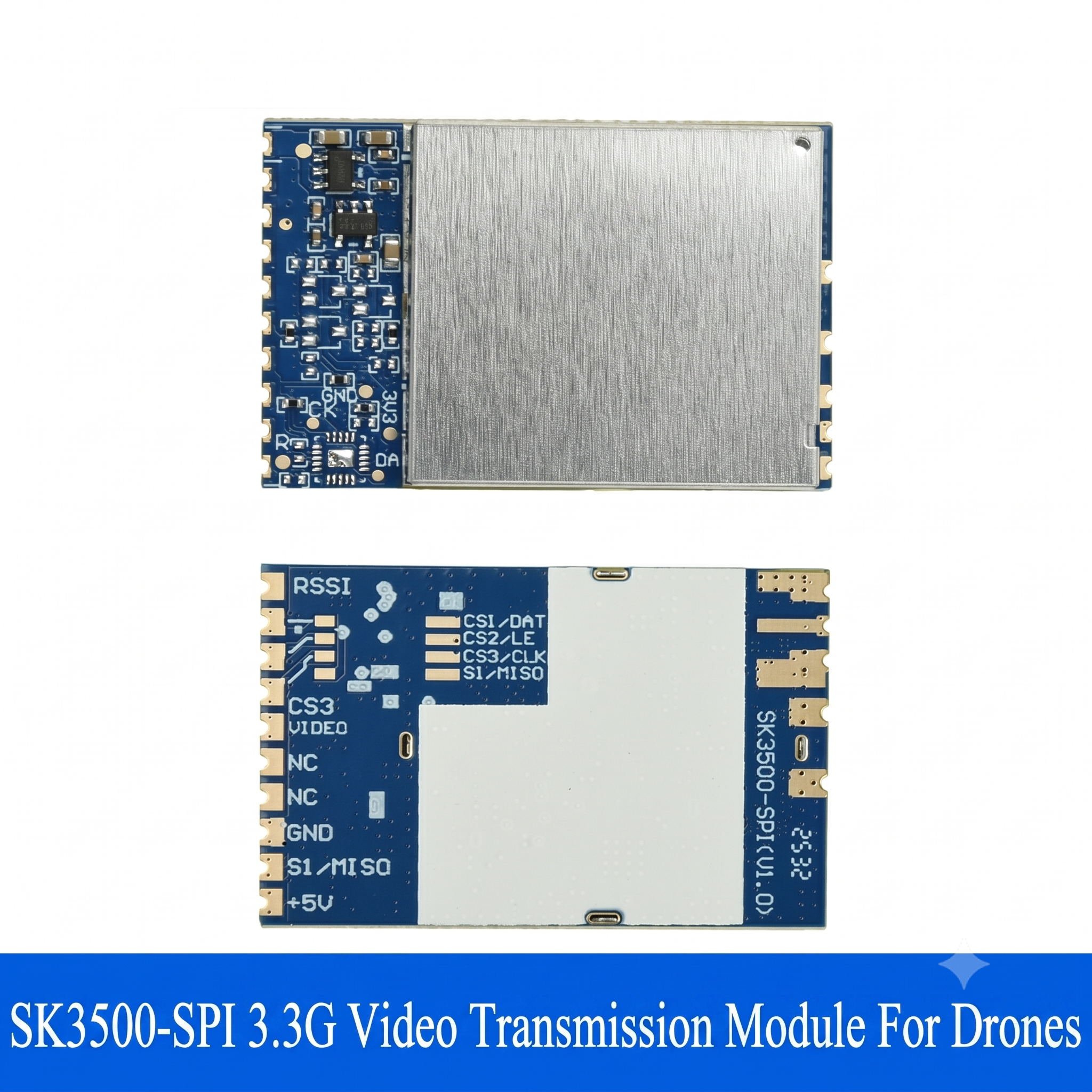

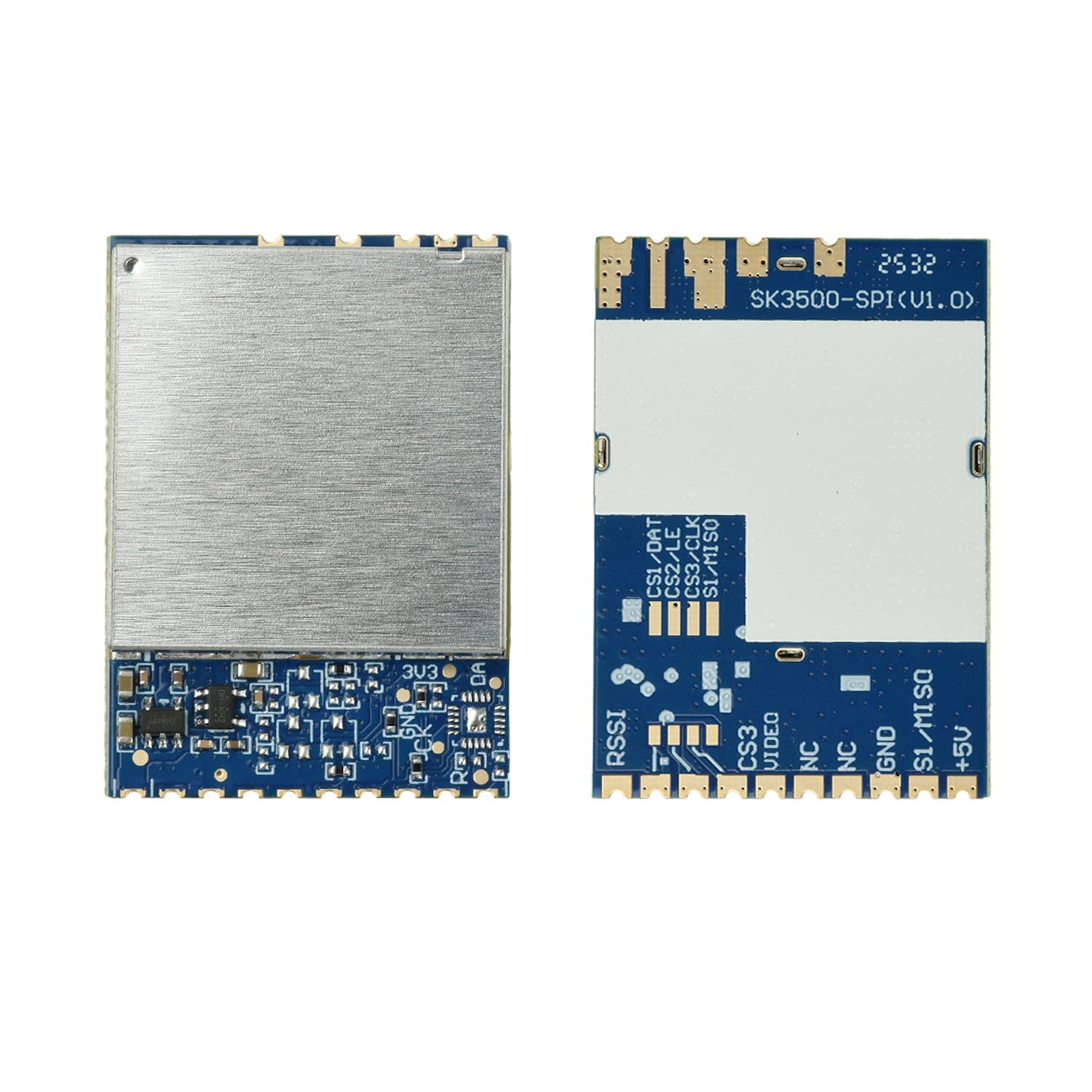

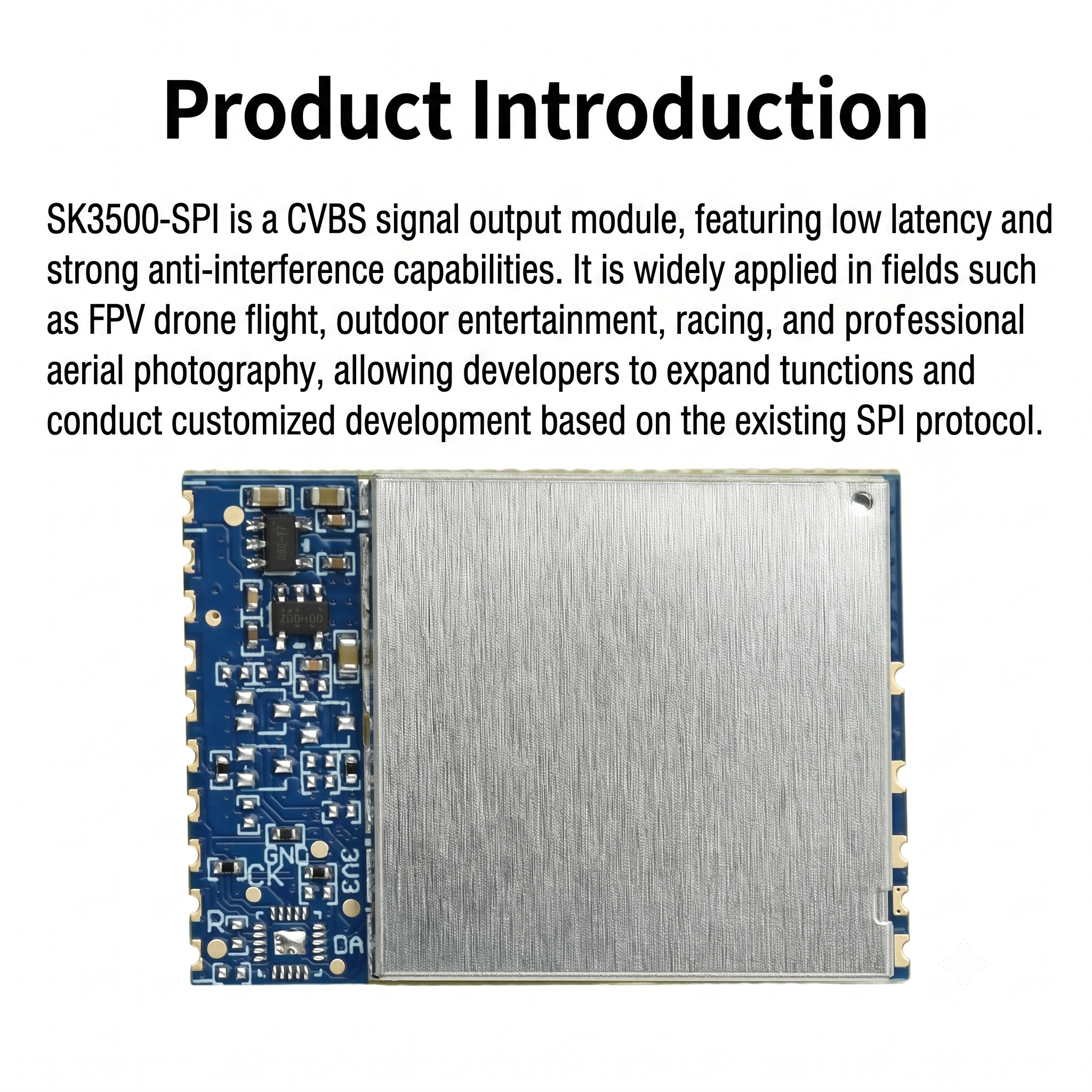

Product Description SK3500-SPI is a module capable of CVBS signal output. With advantages of low latency and strong anti-interference performance, it is widely used in FPV drone flight, outdoor recreation, drone racing competitions, professional aerial photography and other scenarios. Developers can expand functions and carry out customized development based on the existing SPI protocol.
General Specifications ##

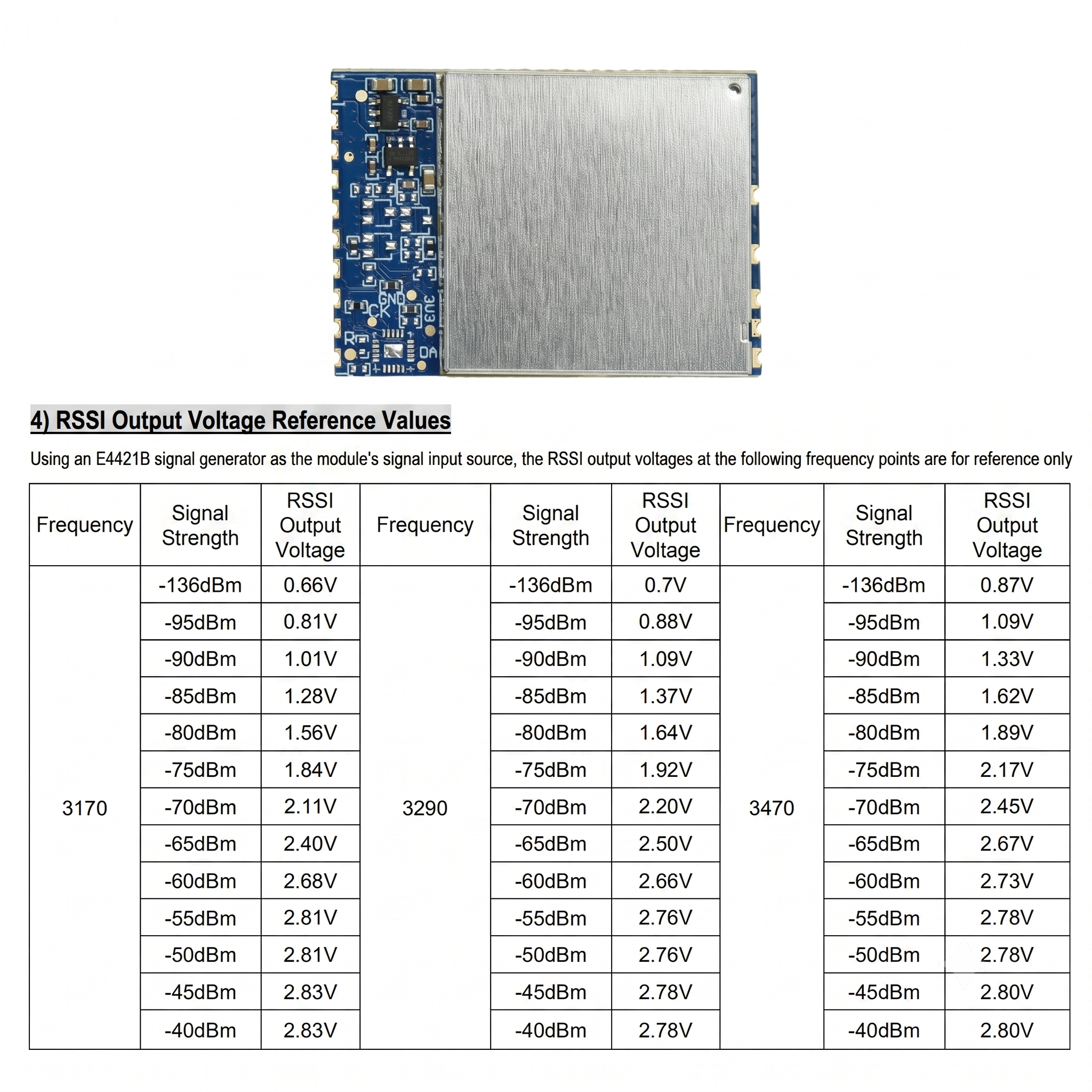

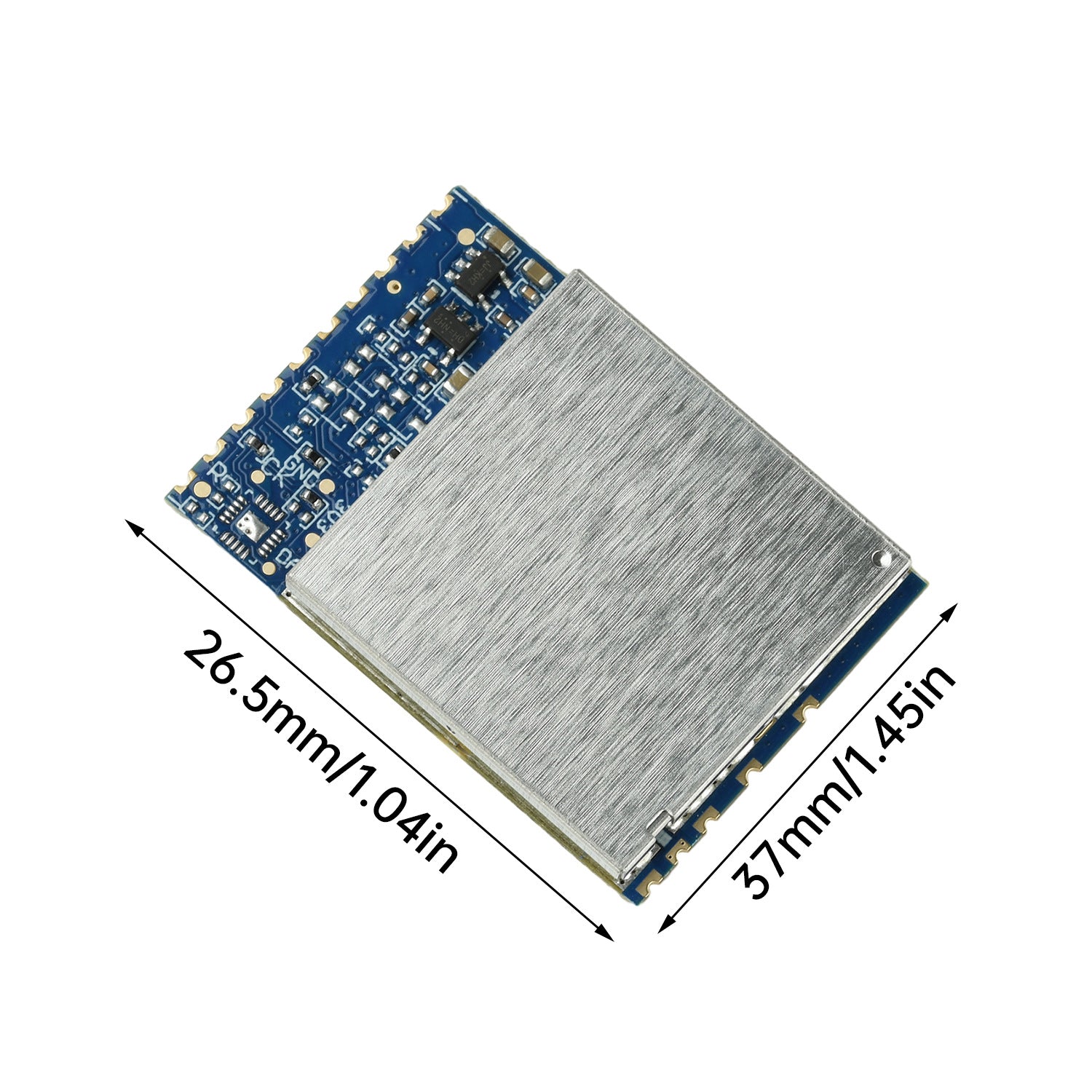

DC Electrical Parameters Operating Voltage: DC 5.0V Operating Current: 420mA ±30mA @5V ## Operating Environment Operating Temperature: -10~+65℃ Storage Temperature: -30~+85℃ Operating Humidity: 85%RH ## RF Parameters Receiving Frequency Range: 3100~3800MHz Demodulation Mode: FM/PLL IF Frequency: 480MHz Antenna Port Impedance: 50Ω (Typ.) Local Oscillator Frequency Stability: ±200kHz Local Oscillator Frequency Accuracy: ±200kHz Local Oscillator Control: PLL Input Local Oscillator Leakage: -65dBm Receiving Sensitivity: -95dBm±3dBm ## Video Parameters Video Output Impedance: 75Ω (Typ.) Video Output Level: 1±0.2Vp-p (Typ.) Video Polarity: Negative Video Frequency Response: ±5dB Max (50Hz ~ 6MHz) Differential Gain: ±5% Max Differential Phase: ±5 Deg. Max 3dB IF Bandwidth: 16.5MHz Minimum Signal-to-Noise Ratio (S/N): 38dB RSSI Slope: 22mv/dBm ## Dimensions 37mm(L)*26.3mm(W)*4.5mm(H) # Packing List 1 × Module
Product Features
-
Supports reception on the 3.3G frequency band, covering a wide frequency range of 3100~3800MHz.
-
Low-latency CVBS video output, ideal for real-time video transmission of FPV drones.
-
Receiving sensitivity reaches -95dBm, featuring strong anti-interference performance and stable signals.
-
Video signal-to-noise ratio ≥38dB, delivering clear images and high transmission fidelity.
-
Compact size for easy integration and installation.
Product Description SK3500-SPI is a module capable of CVBS signal output. With advantages of low latency and strong anti-interference performance, it is widely used in FPV drone flight, outdoor recreation, drone racing competitions, professional aerial photography and other scenarios. Developers can expand functions and carry out customized development based on the existing SPI protocol.
General Specifications ##
DC Electrical Parameters Operating Voltage: DC 5.0V Operating Current: 420mA ±30mA @5V ## Operating Environment Operating Temperature: -10~+65℃ Storage Temperature: -30~+85℃ Operating Humidity: 85%RH ## RF Parameters Receiving Frequency Range: 3100~3800MHz Demodulation Mode: FM/PLL IF Frequency: 480MHz Antenna Port Impedance: 50Ω (Typ.) Local Oscillator Frequency Stability: ±200kHz Local Oscillator Frequency Accuracy: ±200kHz Local Oscillator Control: PLL Input Local Oscillator Leakage: -65dBm Receiving Sensitivity: -95dBm±3dBm ## Video Parameters Video Output Impedance: 75Ω (Typ.) Video Output Level: 1±0.2Vp-p (Typ.) Video Polarity: Negative Video Frequency Response: ±5dB Max (50Hz ~ 6MHz) Differential Gain: ±5% Max Differential Phase: ±5 Deg. Max 3dB IF Bandwidth: 16.5MHz Minimum Signal-to-Noise Ratio (S/N): 38dB RSSI Slope: 22mv/dBm ## Dimensions 37mm(L)*26.3mm(W)*4.5mm(H) # Packing List 1 × Module
